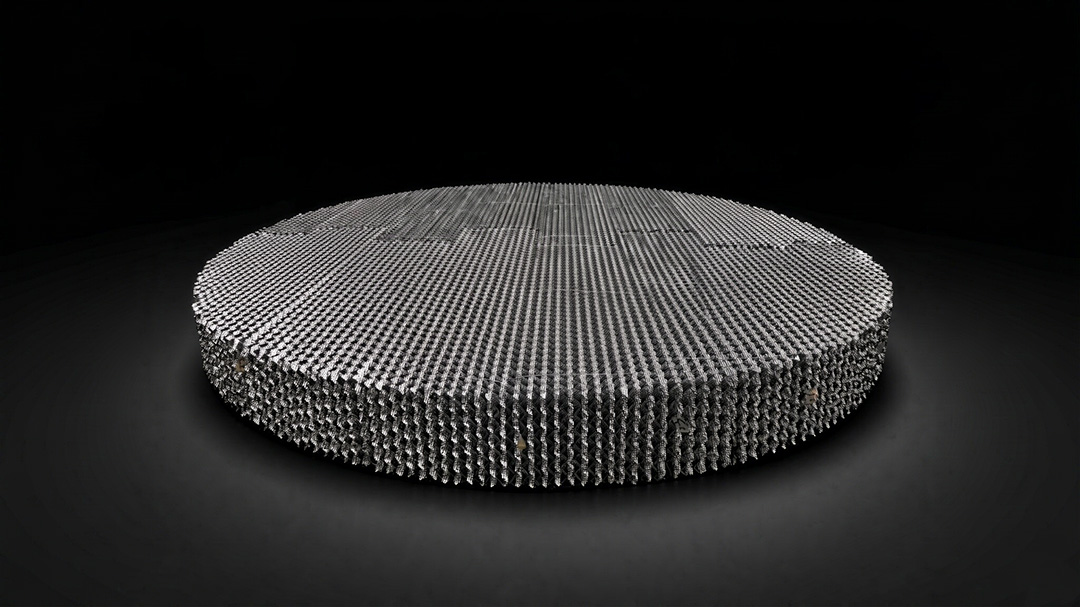

Figure 1: Structured packing elements (corrugated sheet metal) ready for distillation column installation.
Engineering Brief: When your distillation column demands HETP below 400 mm and pressure drop under 0.2 kPa per theoretical stage, random packing hits its limit. Structured packing with corrugated sheets at 45° (Y-type) or 30° (X-type) delivers predictable mass transfer, uniform liquid distribution, and the lowest ΔP per stage of any tower internals — critical for vacuum distillation where every millibar of pressure loss costs separation efficiency.
Structured packing is a type of tower packing manufactured by arranging corrugated metal sheets, wire gauze, or perforated plates into a highly ordered, geometrically fixed structure . Unlike random packing (Pall rings, saddles), where each piece settles unpredictably, structured packing creates uniform, parallel flow channels that eliminate channeling and deliver consistent mass transfer across the entire tower cross-section .
Each packing element is typically 100–300 mm in height, with corrugations running at a fixed angle to the vertical axis. Elements are stacked vertically in the column, with alternating layer orientations (usually 90° rotation between layers) to promote radial mixing of both vapor and liquid phases .

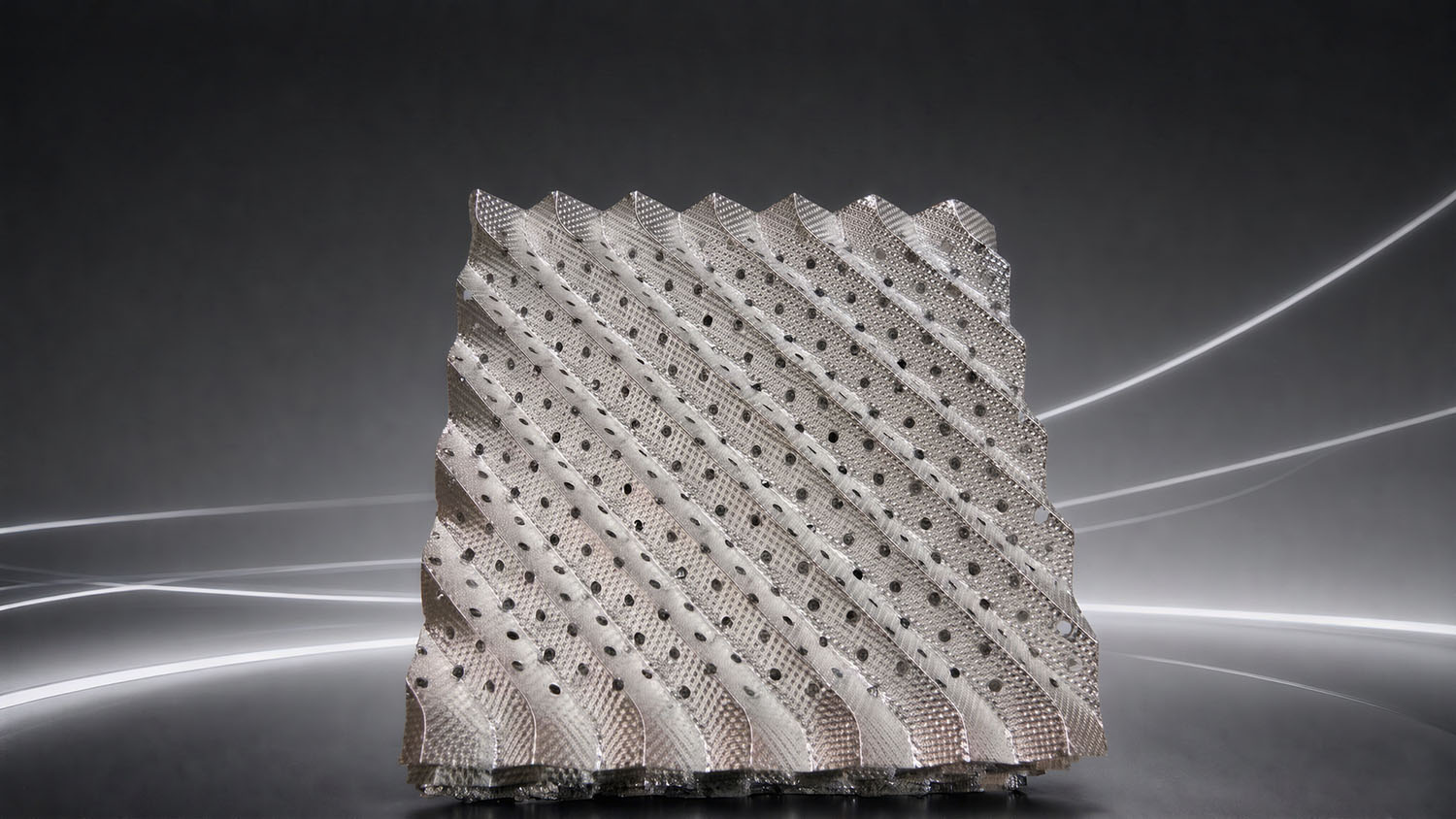

Figure 2: Corrugated sheet structure with 45° Y-type angle — uniform flow channels eliminate channeling.
The corrugation angle determines the trade-off between capacity and efficiency:
| Parameter | X-Type (30°) | Y-Type (45°) |
|---|---|---|
| Corrugation Angle | 30° from vertical | 45° from vertical |
| Gas Capacity | Higher (less flow resistance) | Moderate |
| Mass Transfer Efficiency | Moderate | Higher (longer contact path) |
| Pressure Drop | Lower | Moderate |
| Best For | High-throughput, low-pressure distillation | High-purity separation, vacuum distillation |
Nomenclature: A "250Y" packing has 250 m²/m³ surface area with 45° corrugation. A "250X" uses 30° corrugation. Y-type is the industry default for distillation.
The numeric prefix denotes specific surface area in m²/m³. Higher surface area = more mass transfer per meter but higher pressure drop and lower capacity:
| Model | Surface Area (m²/m³) | Void Fraction (%) | Typical HETP (mm) | ΔP (Pa/m) | F-Factor Limit |
|---|---|---|---|---|---|
| 250Y | 250 | 97–98 | 350–500 | 150–250 | 2.8–3.2 |
| 350Y | 350 | 95–96 | 300–400 | 200–350 | 2.4–2.8 |
| 500Y | 500 | 93–94 | 200–300 | 300–500 | 2.0–2.4 |
| 700Y | 700 | 90–92 | 150–250 | 500–800 | 1.5–2.0 |
Data compiled from industry standard specifications. HETP and ΔP vary with operating pressure, liquid load, and system physical properties. For wire gauze variants (e.g., 500Y-WG), HETP can be 20–30% lower. See our Metal Structured Packing 500Y/700Y deep dive for gauze-type details.
Distillation involves heat, pressure, and often corrosive feeds. Material selection follows the same chloride/sulfuric/temperature logic as other tower internals — see our 304 vs 316L Structured Packing guide for full corrosion thresholds:
| Material | Max Temp | Corrosion Resistance | Typical Distillation Use |
|---|---|---|---|
| SS304 | 450°C | General (no chlorides) | Hydrocarbon fractionation, solvents |
| SS316L | 450°C | Chlorides ≤ 200 ppm | Pharmaceutical, fine chemical, chlorinated solvents |
| Duplex 2205 | 300°C | Chlorides > 200 ppm, high strength | Seawater stripping, high-stress towers |
| Titanium (Gr2) | 300°C | Exceptional (chlorides, Cl2) | Chlor-alkali, HCl, TiCl4 distillation |
Figure 3: Material selection — SS304 (bright), SS316L (matte), Duplex 2205, and Titanium for aggressive distillation.

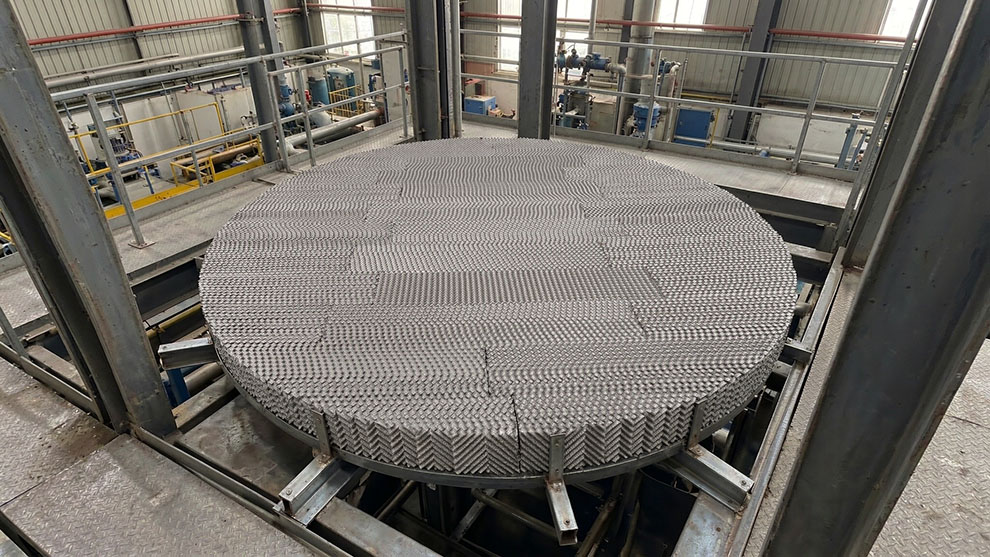

Figure 4: Structured packing section installed in distillation column with liquid distributor at top.
| Factor | Structured Packing | Random Packing | Trays |
|---|---|---|---|
| HETP | 150–400 mm | 500–800 mm | 450–600 mm/tray |
| ΔP per Stage | 0.1–0.5 kPa | 0.3–0.8 kPa | 0.5–1.5 kPa |
| Capacity (F-factor) | 1.5–3.2 | 1.0–2.5 | 1.5–2.5 |
| Turn-Down Ratio | 30–40% | 50% | 70–80% |
| Installation Cost | High (precision required) | Low (dump filling) | High (tray assembly) |
| Best For | Vacuum, high-purity, low ΔP | General absorption, corrosive service | High-capacity, fouling service |
Q: What model should I choose for vacuum distillation at 10 mbar?
A: For vacuum service below 50 mbar, 500Y or 700Y is recommended. The higher surface area compensates for low gas density, and the low ΔP per stage preserves top product purity. Wire gauze variants (500Y-WG) offer 20–30% better HETP if budget allows.
Q: Can I retrofit an existing tray column with structured packing?
A: Yes. Removing trays and installing structured packing typically increases capacity by 20–40% and reduces ΔP by 50–70%. You'll need to install a new support grid, liquid distributor, and bed limiter. Contact us for a retrofit feasibility assessment.
Q: How do I prevent maldistribution in structured packing?
A: Use a high-quality liquid distributor with ≥ 80 irrigation points per m² and uniform flow distribution (± 5%). For beds taller than 4–6 m, install collectors and redistributors at intermediate heights. Level each packing element to ± 1°.
FXSINO manufactures corrugated sheet and wire gauze structured packing in all standard models (250Y/350Y/500Y/700Y) and materials (SS304, SS316L, Duplex 2205, Titanium, Hastelloy). Every element is laser-cut and CNC-folded for dimensional accuracy. We supply complete tower packages including support grids, liquid distributors, and bed limiters. Send us your column ID, operating pressure, and separation specs for a tailored recommendation.
