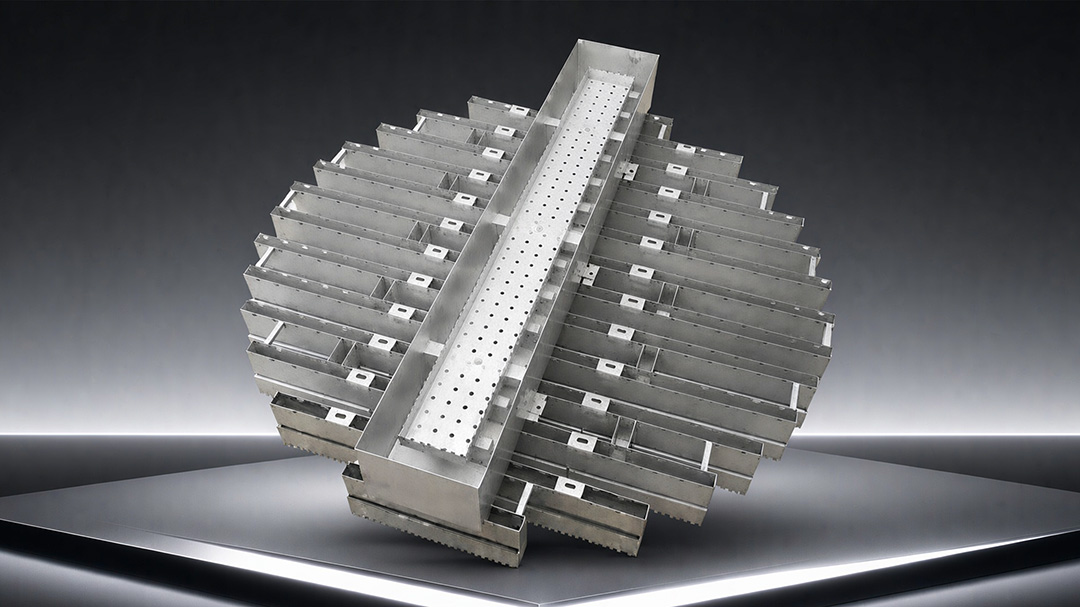

Figure 1: Trough and orifice-pan distributors — gravity types dominate packed-column tops because drip-point control decides bed efficiency.

Tower Liquid Distributor Types and Selection Guide

1. Why Distribution Quality Beats Packing Grade

Packing only provides interfacial area — the distributor decides whether that area is irrigated. Poor distribution causes wall flow, channeling, local flooding and a sharp drop in stages-per-bed. Practical distribution quality (DQ) tops out near 95%, not 100%; below ~50% DQ the realized stages per bed fall off fast.[5,8](@ref)

2. Gravity Distributors

Gravity distributors hold a liquid head on the deck/trough and meter flow through orifices or weirs. They handle large liquid rates, give stable turndown, and are the default for distillation/absorption.[1,2](@ref)

2.1 Orifice Pan (Deck) Distributor

Liquid drops through floor orifices; vapor passes through risers. Standard turndown ~2:1, water ΔP ~0.2–0.6 psi. Clean service only — solids clog the holes.[1](@ref)

2.2 Drip-Tube Distributor

Tubes replace some floor orifices so solids settle on the deck and flow down the tube. Turndown up to 10:1, better for mildly fouling liquor.[1,7](@ref)

2.3 Trough / V-Weir Distributor

Liquid enters a parting box, levels across troughs, overflows weirs or perforations. Turndown 8:1 (trough) to 20:1 (V-weir), best for D>1m and high liquid load. Needs levelness — sensitive to tilt.[5,7](@ref)

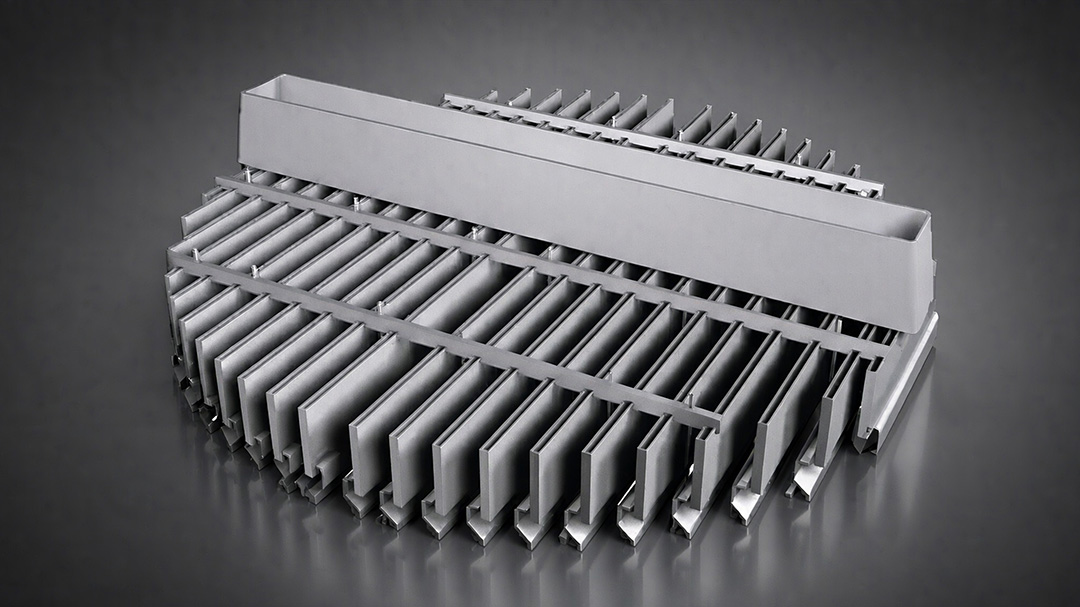

Figure 2: Pan vs drip-tube vs trough — same tower ID, different fouling/turndown trade-off.

3. Pressure Distributors

Pressure-fed types use line pressure across orifices/nozzles. Cheaper, more vapor space, smaller lead-up pipe — but distribution quality is lower and small orifices plug.[2,5](@ref)

3.1 Pipe-Ladder (Lateral Arm)

Header + branch pipes with metering orifices. ΔP ~1–5 psi. Good for scrubbers/strippers with high vapor velocity and limited height. Avoid suspended solids.[1](@ref)

3.2 Spray Nozzle

Nozzles give fine coverage at low liquid rate (≈0.5 GPM/ft²) but ΔP 10–15 psi across nozzles, turndown ~2:1. Refinery/heat-transfer/short bed only; not for fractionation.[1,2](@ref)

4. Type Comparison Table

Turndown/ΔP ranges are generic reference (Mach/Munters); confirm with FXSINO hydraulic check for your fluid.[1,7](@ref)

5. Selection Inputs (Send These to a Vendor)

6. Drip-Point Density by Packing

Source range per Moore–Rukovena DQ practice.[5](@ref)

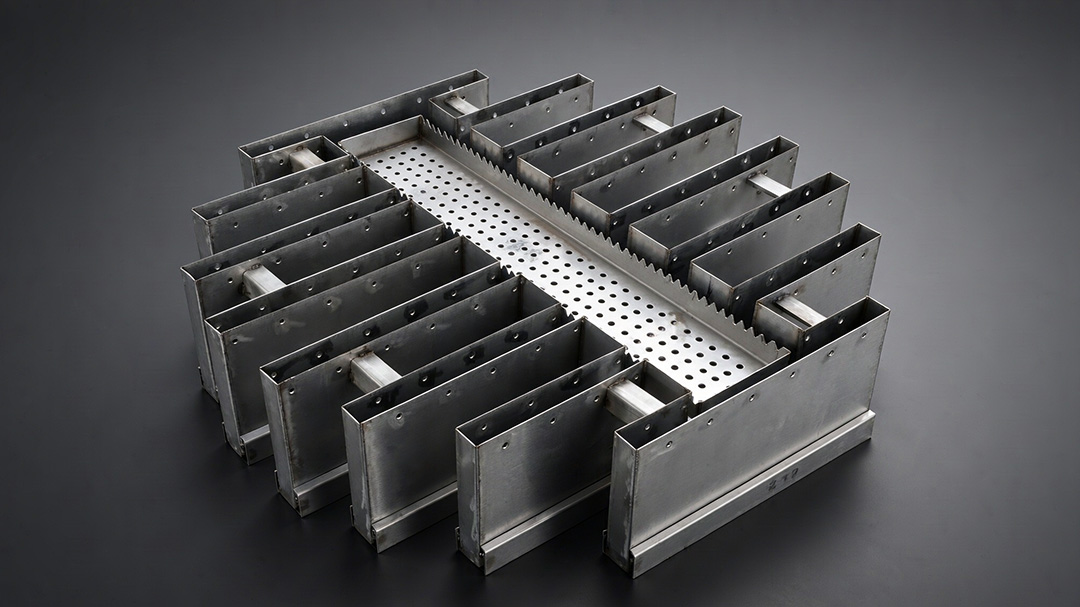

Figure 3: Distributor leveled on support ring — vapor risers clear of packing top, drip points aligned to bed area.

7. When You Also Need a Redistributor

A top distributor is not enough for tall beds. Liquid drifts to the wall through the packing; without intermediate collection the lower bed channels. Rule of thumb: add a liquid collector & redistributor every ~15 theoretical stages (up to 20 with good hardware).[8](@ref)

8. Common Failure Modes

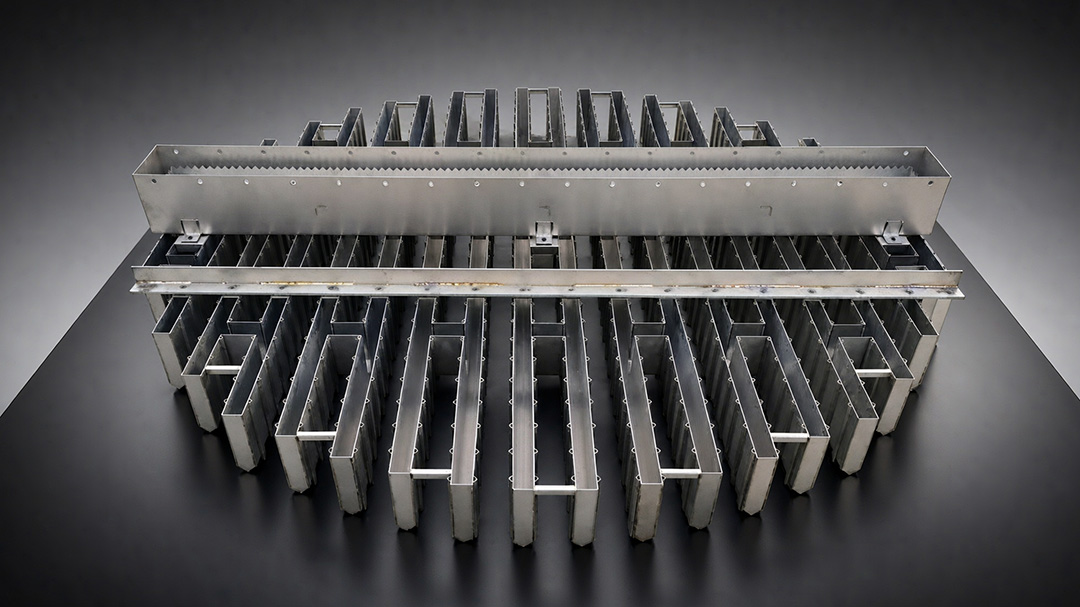

Figure 4: Uniform drip-point grid — no riser shadowing, edge points pulled in from wall.

9. FAQ
